Running Example-Objects

Object

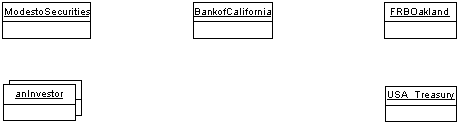

The drawing shows objects representing some of the things of interest to the modeler.  This is an initial model of the environment of the system that will be specified by our example model.

What is missing from this picture?






Perhaps the bonds that are traded and are kept in book entry form at the Federal Reserve Bank of Oakland will be represented as objects.  The drawing shows one bond; this object represents no bond in particular.
